ACT Heavy Duty Race Sprung 4 Pad Clutch Clutch Kit 2013-2021 BRZ Exclusive Offer

Description

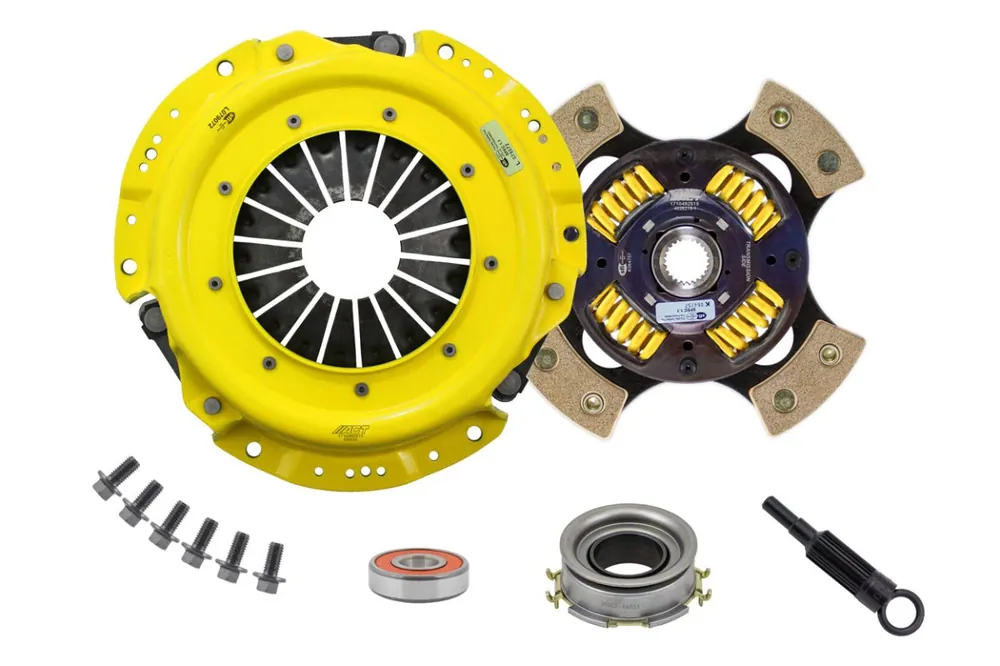

The SB13-HDG4 kit features ACT’s Heavy Duty pressure plate paired with a 4-pad spring-centered race disc for high-performance applications. The diaphragm-style pressure plate increases clamp load, reduces deflection, and maximizes clutch life. The 4-pad spring-centered disc properly damps torsional vibrations for quieter operation while resisting failure under harsh conditions. Engagement is harsher, but shifting is faster. This 4-pad spring-centered disc is well-suited for smaller disc sizes and smaller engines.

Specs

• Torque Capacity: 332 ft/lbs (104% over OE)
• Disc Material: Ceramic
• Disc Diameter: 9 in / 228 mm
• Input Shaft Diameter: 1 in
• Pressure Plate Type: Heavy Duty
• Product Weight: 15.1 lbs
• Flywheel Type: Streetlite

Performance Characteristics

• Feel: Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle
• Life: Moderate friction life, extended by ACT’s exclusive diaphragm design
• Quality: Precisely assembled, accurately balanced, with ceramic friction materials for high heat tolerance and maximum performance
• Recommended Use: High-horsepower street or race use
• ACT Difference: 100% clamp load tested, dynamically balanced for smooth high RPM reliability
