Wholesale SPL Parts Front Bumpsteer Correction Kit 2008-2024 WRX / 2008-2021 STI / 2013-2024 BRZ / 2022-2024 GR86 / 2013-2016 FRS / 2017-2021 GT86

Description

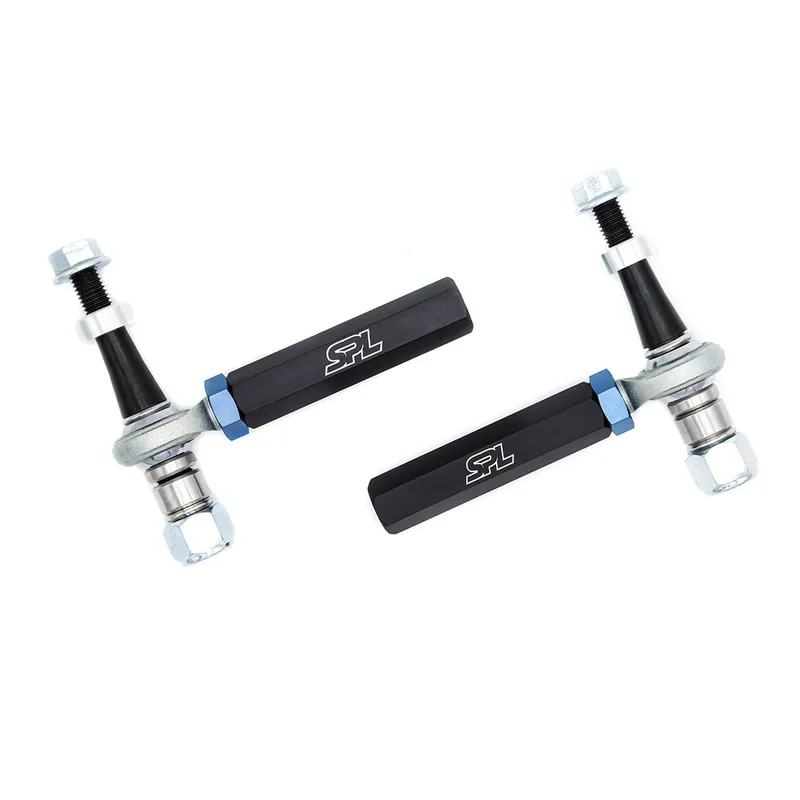

SPL Tie Rod Ends for the GR86 / BRZ / GT86 / FR-S allows for bumpsteer adjustment by allowing the tie rod end pivot to be relocated with the use of spacers. On lowered cars, this results in less dynamic toe change (aka bumpsteer) as the suspension compresses (bump) during cornering and over rough roads, resulting in more predictable handling, less tire shoulder wear, and better stability over rough roads and track curbing.

Benefits

• Large Range of Bumpsteer Correction
• Lightweight: 2.22 lbs (1.0 kg) / 1.11 lbs (0.5 kg) per Side
• Improves Steering Feel, Handling, and Stability Over Bumps, Especially While Braking/Turning
• Reduced Front Tire Toe Wear
• Maintenance-Free, US Made, PTFE-Lined FK Bearings

Materials

• 6061-T6 Aluminum Turnbuckle
• 6061-T6 Aluminum Ring Spacer (For GR86 / 2nd Gen BRZ)
• 4140 Chromoly Steel Tapered Stud
• 304 Stainless Steel 1/8″, 1/4″, and 1/2″ Spacers
• Ti-6Al-4V Titanium Jam Nut (Anodized Blue)

Noise, Vibration, and Harshness (NVH)

The SPL tie rod ends are not a significant contributor to NVH. They improve the driving experience by reducing bumpsteer on uncorrected cars.

Confirmed Applications

• 2021+ Toyota GR86 (ZN8)
• 2013 – 2021 Toyota 86 / Scion FR-S (ZN6)
• 2013+ Subaru BRZ (ZC6/ZD8)
• 2008+ Subaru WRX / STI (GR/VA/VB)
